G300-6S/6D

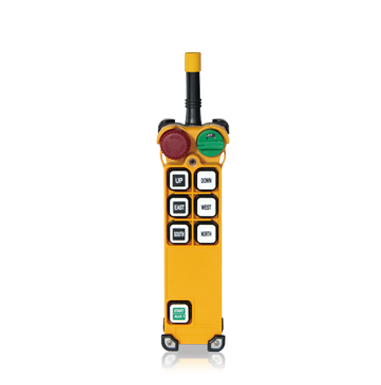

Transmitter

Dimension: 245*61*51 mm (including antenna)
Weight: 246 g (without batteries)
Power: DC 6V (4 AA size batteries)

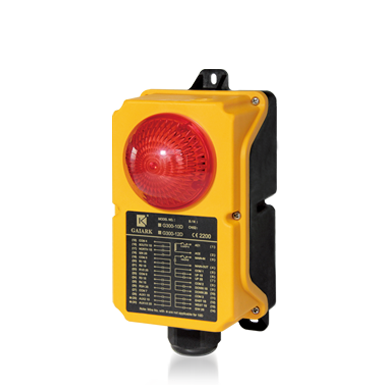

Receiver

Dimension: 234*116*130 mm (including RX LED Indicator)
Weight: about 1240g (without wire cable)
Power Supply: (1)24/42/230VAC, 48/110/220VAC,
                         36/220/380VAC, 48/220/380VAC,
                         110/220/380VAC tolerance ±20％
                         (2)12~24 VDC

Features

1. PLL series (AFS Auto frequency selection)
2. 6S : 6 single step buttons, 1 start button , 1 EMS
     button and 1 Rotary Key
3. 6D : 6 double step buttons , 1 start button , 1 EMS
    button and 1 Rotary Key
4. Extraordinary design, all modules/parts/cables
    fixing on the RX upper casing instead of lower
    casing
5. Patented Receiver Housing, makes maintenance
    easier and safer
6. RX large size LED indicator provides crucial
    messages to guide the ground operator
7. Take & Release function, safety concept of first
    come and first served
8. Auto frequency selection, best operating
    experience and free from interference
9. Integrating hamming code and CRC code
    technology, data modulation/demodulation
    more accurate
10. Hamming distance >20 ,surpassing the industry
      standard
11. Transmitter generates Security Random Code
       signal with random coding to prevent spy
      copying
12. Innovative e-Card (plug & play)design: Easy
      transfer all system data to a spare transmitter
      & receiver
13. Transmitter acting like an e-Card duplicator, can
      be used for data back-up and transfer
14. Non-repeated 4.3 billion sets ID code
15. Low power consumption transmitter
16. Temperature range : -30°C ~ +85°C
17. Powerful function setting software (optional)for
      easy customized configuration
18. Material : Fiberglass reinforced plastic materials
19. Standard configuration:
* Transmitter (with Protection cover)*1
* Receiver (with wire cable)*1
* User manual* 1
* self-tapping screws for RX fixing
