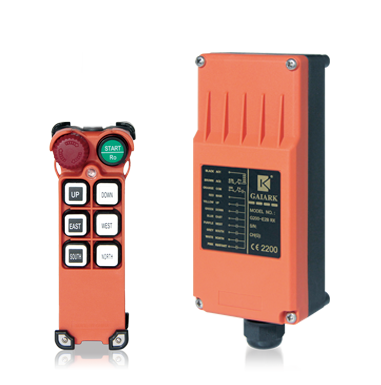

G200-E2M

       Transmitter

        Receiver

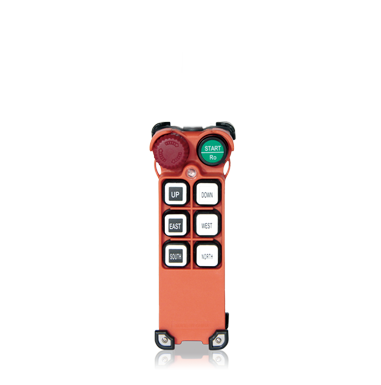

Transmitter
Dimension: 16.5 x 5.0 x 5.0 cm
Weight : 200 g(without batteries)
Power: DC 3V(2 AA size batteries)

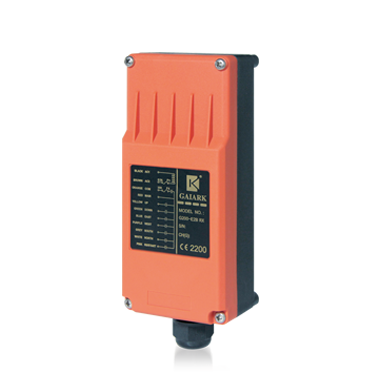

Receiver
Dimension: 20.0 x 8.5 x 6.0 cm
Weight: 785 g(with wire cable)
Power Supply: (1) 24/36/48/110/220/380 VAC ±20%
                         (2)12~24 VDC
Features
1. PLL series (AFS Auto frequency selection)
2. 6 single step buttons, 1 start button and 1 EMS
    button
3. Internal antenna
4. Auto frequency selection(real time frequency
    changing technology)
5. Reliable communication(integrating hamming
    code and CRC(Cyclic Redundancy Check)
    technology, which provides more accurate radio
    communication)
6. The smart transmitter generates SRC(Security
    Random Code) radio signal with random coding
     to prevent spy copying
7. Innovative e-Card(plug & play) design: all system
    data are saved inside an e- Card, being similar to
    SIM card in the mobile phone, for easy transfer to
    a spare transmitter & receiver to avoid the
    downtime in the case of a transmitter or receiver
    malfunction.
8. Transmitter acting like an e-Card duplicator, can
    be used for data back-up and transfer.
9. Non-repeated 4.3 billion sets ID code
10. Low power consumption transmitter
11. Temperature range : -35°C ~ +85°C
12. Powerful function setting software(optional)for
     easy customized configuration
13. Material : Nylon +30% Glass-Fiber
14. Standard configuration:
* Transmitter(with Protection cover)*1
* Receiver(with wire cable)*1
* User manual* 1
